Establishing an API Connection and Obtaining a Bearer Token using Postman

Getting Started

To begin, make sure that you have Postman installed.

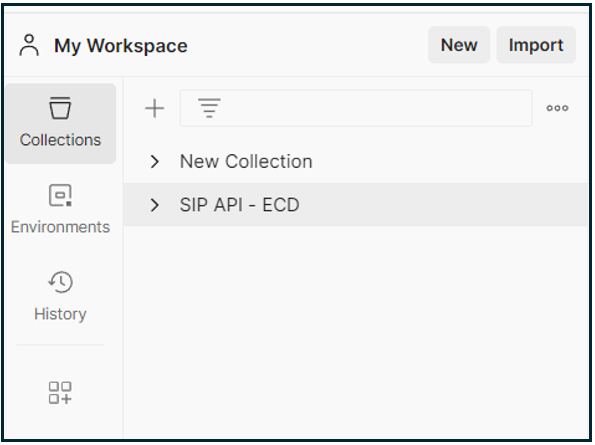

Open Postman and navigate to the Collection tab on the left-hand side. Then, click New. A window will open, asking you to choose which type of connection you want to make. Select the HTTP option.



Making a Connection

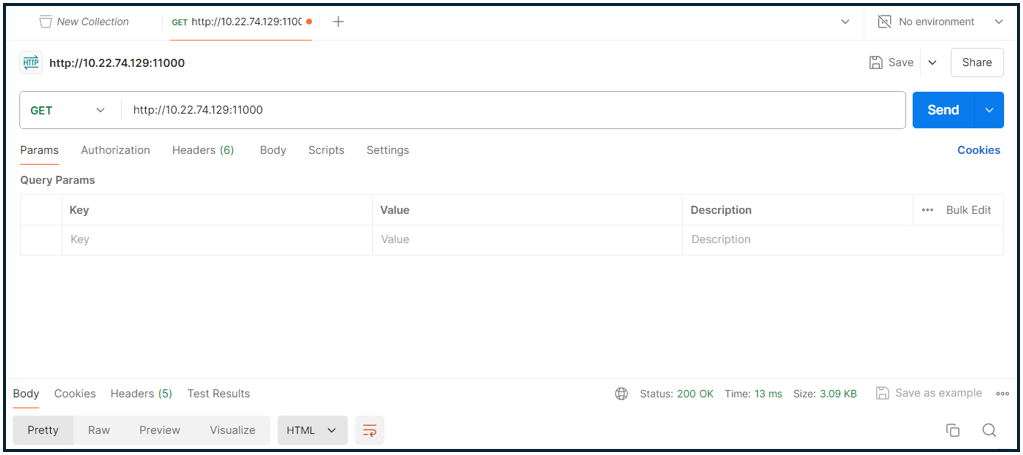

Enter the IP address of the ECD followed by the port number :11000 in the field named Enter URL or paste text. Then, click the Send button. If the connection is successful, you will receive a message in the bottom right corner stating Status: 200 OK.


This message indicates that the connection between Postman and ZeroKey API was successfully established.

Generating a Bearer Token

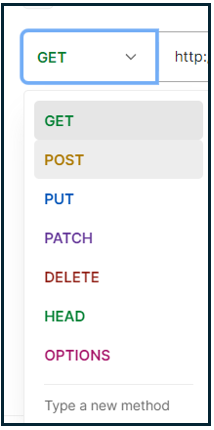

  1. Click the GET dropdown menu and select POST.

  1. In the URL tab, enter the IP address of your ECD followed by :5000/v3/auth/token.

  1. Navigate to the Body tab and select raw. Enter the following lines of codes in the Body tab:

{

    "grant_type": "client_credentials",

    "auth_id": "LocalAdmin",

    "auth_secret": "DefaultSecret"

}

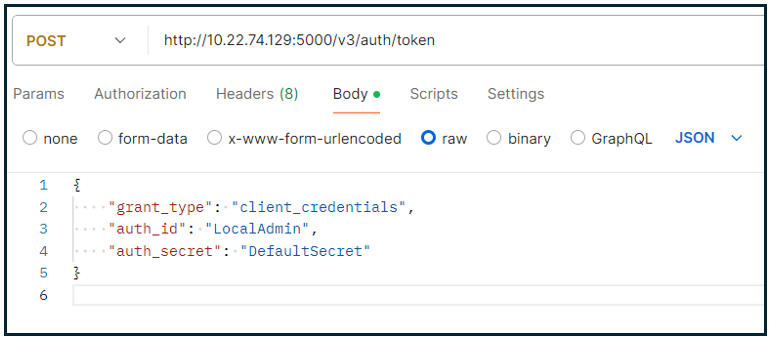

Your Postman authentication should now look like the following:

  1. Lastly, click the Send button.

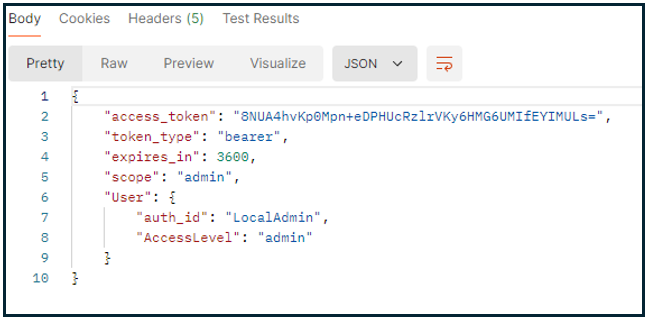

Clicking Send will display the bearer token on the bottom of the Postman app.


With a successfully generated bearer token, you can start sending GET commands to the ECD and obtain information such as Zone information, Anchor coordinates, and more.
