Establishing an API Connection with .NET (C#)

Getting Started

To start your integration with ZeroKey, you’ll need to connect to the Spatial Intelligence Platform (SIP) API. Here’s how to begin:

1. Go to the ZeroKey API webpage and navigate to the .NET section under Get Started. The following link will direct you to this page: https://api.zerokey.com/v3#section/Get-Started/.NET-(C)

2. Download and install the Blazor app in your Visual Studio.

3. Install the NuGet packages from the NuGet package manager.

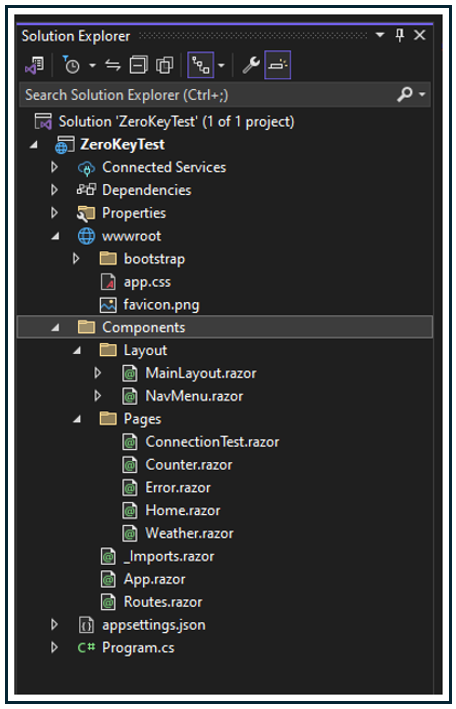

4. Create a new .razor file under the Pages folder and name it ConnectionTest.razor.

5. Copy and paste the code located under .NET (C#) on ZeroKey’s API page.

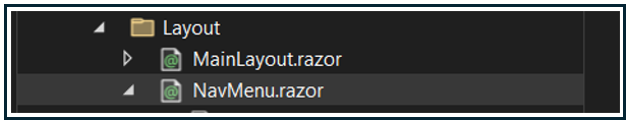

6. Open the NavMenu.razor file under the Layout folder and insert the following code:
   <div class="nav-item px-3">

      <NavLink class="nav-link" href="connectionTest">

          <span class="oi oi-list-rich" aria-hidden="true"></span> Connection Test

      </NavLink>

   </div>

Editing the Code

Once you have your script ready, you can proceed to edit the .NET (C#) code.

1. First, locate the placeholders for the API host. Replace every {API Host Here} line with the IP address of the Edge Compute Device (ECD).

   • For example:
     // Request OAuth token
var oauthTokenResponse = await
httpClient.PostAsync("http://10.22.74.129:5000/v3/auth/token",
new StringContent(authDataJson, Encoding.UTF8,
"application/json"));
var oauthTokenJson = await
oauthTokenResponse.Content.ReadAsStringAsync();
var oauthToken =
JsonConvert.DeserializeObject<AuthResponseData>(oauthTokenJson
);

   • In this case, the IP address is 10.42.0.1.

2. Find the var authDataJson. Replace the placeholders for the username and password with these credentials, respectively: LocalAdmin, DefaultSecret.

   • The code in the ZeroKey API webpage looks like the following:
     var authDataJson =
"{\"grant_type\":\"client_credentials\",\"auth_id\":\"{YOUR USERNAME}\",\"auth_secret\":\"{YOUR PASSWORD}\"}";

   • Replace Your Username and Your Password with the following credentials. The revised code should look like the following:
     var authDataJson =
"{\"grant_type\":\"client_credentials\",\"auth_id\":\"LocalAdm
in\",\"auth_secret\":\"DefaultSecret\"}";

Note: Ensure to use LocalAdmin as your username and DefaultSecret as your password.

Running the .NET (C#) application

1. In Visual Studio, open the dropdown menu beside the Launch button. Select “your_project_name” Debug Properties.

2. In the APP URL section, change the address from https to http.

3. Click the Play button next to http.

4. The browser will then open.

   • If no errors occur, you’ll see LOCATION_RAW_UPDATE messages in the text blocks, indicating that the connection is successful.

   • If you do not receive an error, ensure that the entries for the IP address and credentials are correct and retry running the script.
